Inspection and maintenance instruments

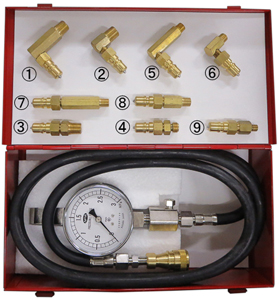

AT-3 |
Hydraulic gauge for automatic transmission |
| Meter diameter | Max. scale | Min. scale | Overall length | Case | Total weight |
| φ75mm | 3MPa （Approx.30kgf/c㎡） | 0.1MPa | 2,090mm | Metal case W290× D165× H70mm | Approx. 2,600g |
This hydraulic gauge is used to make measurement of
various hydraulic systems of the automatic transmission
system so as to locate faulty part such as a pressure
leakage, defective part of a hydraulic piston and
clogging of a screen.
The adapter and the tester are connected by means of
a coupler with a valve. So, after adapters are fitted
onto all the parts requiring measurement, the tester
can be connected to the adapters one after another,
thereby allowing quick measurement.
| Provided adapters | ||
| ① PT1/4 | (L-type, Long) | (1) |
| ② PT1/4 | (L-type, Short) | (1) |
| ③ PT1/4 | (Straight) | (1) |
| ④ M12×1.5 | (Straight) | (1) |
| ⑤ PT1/8 | (L-type, Long) | (1) |
| ⑥ PT1/8 | (L-type, Short) | (1) |
| ⑦ PT1/8 | (Straight, Long) | (1) |
| ⑧ PT1/8 | (Straight, Short) | (1) |
| ⑨ 5/16-24UNF | (Straight) | (1) |
※A variety of optional adapters are also available.
Top

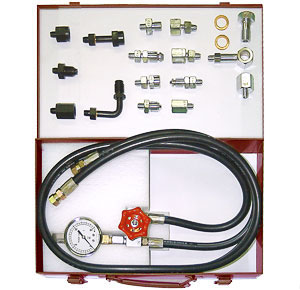

PS-150 |
Pressure gauge for power steering |
This is a tester for the measurement of hydraulic pressure of the hydraulic power steering system. With various types of adapters provided, the tester can be used for a wide variety of vehicle types.
| Meter diameter | Max. scale | Min. scale | Overall length | Case | Total weight |
| φ60mm | 15MPa （Approx.150kgf/c㎡） | 0.5MPa | 1,660mm | Metal case W370×D230×H80mm | Approx. 4,100g |
※Adapters for vehicles of Hino Motors are separately available.
| Nissan | Toyota | Isuzu |
 |
 |
 |
Top

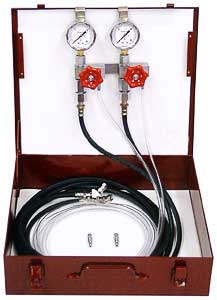

BC-4WD |
Hydraulic pressure tester for brake |
This tester allows the simultaneous measurement of the hydraulic pressure of two systems of the hydraulic brake. The hose as long as 3 meter and the handle type air- bleeding valve requiring no tool allows quick and easy setup for measurement.
| Meter diameter | Max. scale | Min. scale | Overall length | Accessories | Case | Total weight |
| φ60mm | 15MPa （Approx.150kgf/c㎡） | 0.5MPa | 3,170mm | Adapter M10×1.0 (2) | Metal case
W400×D355×H105mm | Approx. 5,350g |
Top

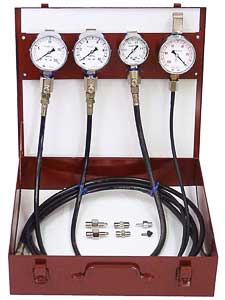

BT-2・BT-3A・BT-3H・BT-4 |
Brake booster tester |
※The photo shows Model BT-4
This tester allows performance tests of various brake boosters in the vehicle-installed state.
- Testing capacity (BT-4)
- ① Air tightness test when opened
- ② Oil tightness test
- ③ Operation start pressure test
- ④ Operating air tightness test at full load
- ⑤ Air tightness test of vacuum check valve
- ⑥ Air tightness test of power piston
| Tester | Meter diameter | Max. scale | Min. scale | Overall length |
| 20MPa Pressure gauge | φ75mm | 20MPa （Approx.200kgf/c㎡） | 1MPa | 1,540mm |
| 10MPa Pressure gauge | φ75mm | 10MPa （Approx.100kgf/c㎡） | 0.5MPa | 1,540mm |
| 1MPa Pressure gauge | φ60mm | 1MPa （Approx.10kgf/c㎡） | 0.02MPa | 1,470mm |
| -100KPa Vacuum gauge | φ75mm | Negative pressure -100kPa （Approx.75cmHg） | 5kPa | 1,670mm |
| Model | BT-2 | BT-3A | BT-3H | BT-4 |
| Item included in the set | 20MPa pressure gauge 10MPa pressure gauge | 20MPa pressure gauge 10MPa pressure gauge 1MPa pressure gauge | 20MPa pressure gauge 10MPa pressure gauge -100kPa vacuum gauge | 20MPa pressure gauge 10MPa pressure gauge 1MPa pressure gauge -100kPa vacuum gauge |
| Accessories | Adapter for 20MPa (2) （M10×1.25） Nipple for 10MPa (1) （PT1/8） | Adapter for 20MPa (2) （M10×1.25） Nipple for 10MPa (1) （PT1/8） Nipple for 1MPa (1) （PT1/8） | Adapter for 20MPa (2) （M10×1.25） Nipple for 10MPa (1) （PT1/8） Nipple for vacuum gauge (1) （PT1/8） Rubber adapter for vacuum gauge (1) | Adapter for 20MPa (2) （M10×1.25） Nipple for 10MPa (1) （PT1/8） Nipple for 1MPa (1) （PT1/8） Nipple for vacuum gauge (1) （PT1/8） Rubber adapter for vacuum gauge (1) |
| Application | For hydraulic pressure measurement | For air master | For hydro master | For air master For hydro master |
| Total weight | Approx.4,300g | Approx.4,900g | Approx.4,750g | Approx.5,530g |
| Case | Metal case W400×D355×H105mm | |||
The items to be included in the set can be changed at your request.
Top

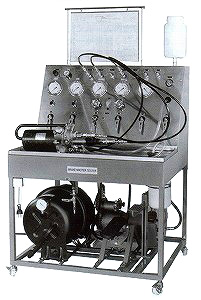

BMT-70 |
Tester for brake master 【 production on order 】 |
This tester for the brake master allows continuous
checking of the brake booster equipment including the air
master, air booster, and hydro master installed on a large-
size car, for each unit in actual running conditions.
It allows continuous operation check for each item. Each
unit and tester main body are connected by a one-touch
coupler to enable easy inspection work.
- Unit measurement item
- ① Hydraulic pressure and air tightness
- ② Air tightness test in non-operating and open state
- ③ Operation start pressure test
- ④ Full-load test
- ⑤ Air tightness test at full load
- ⑥ Residual pressure check valve test
- Outside dimensions
- 860 (Overall width) × 700 (Depth) × 1,438 (Overall height) (mm)
- Weight
- Approx.95kg
Top

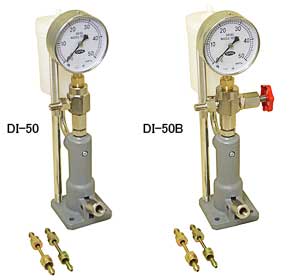

DI-50・DI-50B |
Nozzle tester |
The nozzle tester is used for inspection and adjustment through the measurement of injection open valve pressure, oil-tightness test and visual inspection of injection angle and atomized state of an injection nozzle for a diesel engine.
Model DI-50B is provided with a valve on Model DI-50.
The valve is closed to cut pressure transmission to the meter so as to protect the meter when the injection state is visually checked or the injection nozzle is removed.
| Model | Meter diameter | Max. scale | Min. scale | Pressurization capacity | Accessories | Total weight |
| DI-50 | φ100mm | 50MPa （Approx.500kgf/c㎡） | 1MPa | 50MPa | Adapter pipe No.1 Adapter pipe No.4 | Approx. 6,000g |
| DI-50B | Approx. 6,500g |

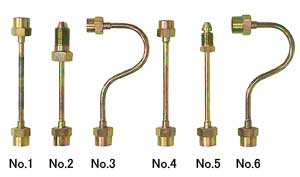

Table of adapter pipes for nozzle tester
| No. | Applicable manufactureｒ (for reference) | Thread size / Seal type | Remarks |
| No.1 | Isuzu | Female screw M14×1.5 / Male seal | Standard accessories |
| No.2 | Nissan Diesel | Male screw M16×1.5 / Male seal | Optional accessories |
| No.3 | Isuzu Toyota Daihatsu Mitsubishi | Female screw M12×1.5 / Male seal | Optional accessories |
| No.4 | Toyota Hino Mazda Mitsubishi Kubota | Female screw M12×1.5 / Male seal | Standard accessories |
| No.5 | Yanmar Komatsu | Male screw M14×1.5 / Male seal | Optional accessories |
| No.6 | Yanmar | Female screw M14×1.5 / Male seal | Optional accessories |
※The information on the applicable manufacturer included in the Table is given just for a reference purpose. Be sure to check the thread size and seal type for use.
Top

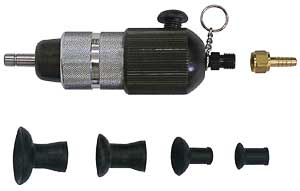

VR-1 |
Air valve lapper |
☆Optional accessories: Suction rubber 16mm (Dia.)
The air valve lapper improves efficiency in lapping of valves by the use of air pressure of a compressor.
Since required up-and-down motion is given by adjusting air pressure, this lapper can be used extensively for a smaller valve to a larger valve.
| Operating air pressure | Outside dims. | Main body weight | Accessories | Total weight |
| 0.4～0.8MPa （Approx.4～8kgf/c㎡） | 225×φ80mm | Approx. 1,200g | Hose joint Suction rubber 45mm(Dia.) Suction rubber 35mm(Dia.) Suction rubber 30mm(Dia.) Suction rubber 20mm(Dia.) | Approx. 1,600g |
Top

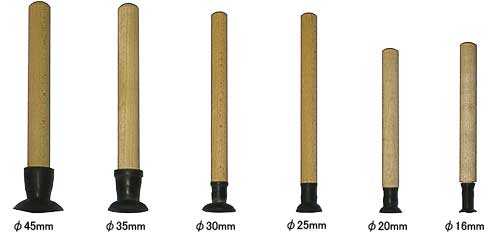

Hand valve lapper
