Measuring instruments of fuel pressure

PG-10D

 Fuel pressure indicator (for Japanese car)
PG-10D
Meter
diameter		Max. scaleMin. scaleOverall
length		CaseTotal
weight
φ75mm1,000kPa
（Approx.10kgf/c㎡）		10kPa700mmMetal case
W290×
D165×
H70mm		Approx.
1,900g

This is a tester for measuring the fuel pressure of computerized fuel injection equipment.
The tester is provided with adapters for Japanese cars.

※The tester also allows the measurement of fuel pressure of
a foreign car (K Jetronic type) by the use of the adapter for PGS-10C.

PG-10D-AD
  • Provided adapter
  • ①Internal diameter 6mm Hose (15 x 6)
  • ②Internal diameter 7mm Hose (12 X 7)
  • ③Round joint Internal diameter 8mm
  • ④Round joint Internal diameter 10mm
  • ⑤Round joint Internal diameter 12mm
  • ⑥Union bolt 8mm
  • ⑦Union bolt 10mm
  • ⑧Union bolt 12mm
  • ⑨Straight joint
  • ⑩T-type joint
  • ※A variety of optional adapters are also available.

Top

PGS-10C

 Fuel pressure indicator (for foreign car)
PGS-10C
Meter
diameter		Max. scaleMin. scaleOverall
length		CaseTotal
weight
φ100mm1,000kPa
（Approx.10kgf/c㎡）		10kPa720mmMetal case
W290×
D165×
H70mm		Approx.
2,000g

This fuel pressure indicator is provided with adapters for the measurement of the fuel pressure of foreign cars (K Jetronic type) and allows the testing of fuel injection equipment by measuring the fuel pressure on each part such as system pressure and control pressure.

※The tester also allows the measurement of the fuel pressure of a Japanese car by the use of the adapters for PG-10D.

PGS-10C-AD
  • Provided adapter
  • No.1 Hose with two-way cock
    　（M12×1.5）
  • No.2 Benz
    　（M14×1.5　T-type）
  • No.3 Audi
    　(M8 x 1.0, Set of male and female adapters)
  • ※A variety of optional adapters are also available.

Top

Adapters for Fuel pressure indicator

(For PG-IOD and PGS-IOC)

燃圧計用アダプター
ModelApplicable
vehicle type		Thread sizeTypeRemarks

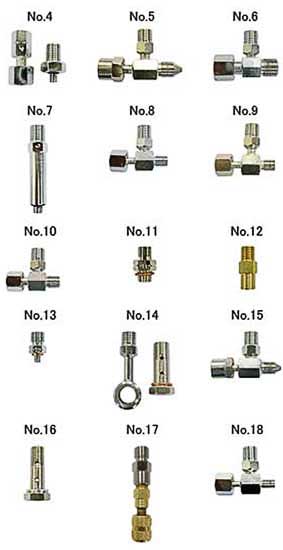

No.4PorscheM6×1.0Set of male and
famale adapters		No.1　Hose with
two-way cock
No.5PorscheM14×1.5Ｔ type
No.6PorscheM16×1.5Ｔ type
No.7BenzM8×1.0Straight
No.8BenzM10×1.0Ｔ type
No.9BenzM10×1.25Ｔ type
No.10BenzM12×1.5Ｔ type
No.11VolvoM14×1.5Straight
No.12Lincoln, Corvette8V1Straight (Core type)TV-8 32 threads
No.13HondaM6×1.0Straight
No.14MazdaM14×1.5Union and bolt set
No.15Pontiac7/16-20UNFＴ type
No.16BMW, Volvo, VolkswagenM12×1.5Bolt aloneRound joint,
12mm required
No.17Chevrolet, Cadillac7/16-20UNFStraight (Core type)
No.18PorscheM8×1.0Ｔ type

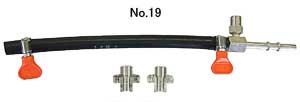

No.19ToyotaＴ typeProvided with
special tool

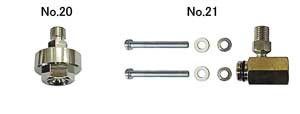

No.20HondaM12×1.0
No.21MitsubishiＴ typeBolt (2)
No.22Honda (for 8mm pipes)Ｔ typeCoupler type
No.23Toyota (for 8mm pipes)
Mitsubishi		Ｔ typeCoupler type
燃圧計用アダプター 燃圧計用アダプター 燃圧計用アダプター
燃圧計用アダプター

Top

LP-1

 Fuel pressure indicator for LPG car
LP-1

This is a tester for inspecting and servicing the regulator of LPG car.
Inspection of decompression performance can be made by measuring the fuel pressure of the regulator by connecting it to the blind plug of the regulator.

Meter
diameter		Max. scaleMin. scaleOverall lengthAccessoriesTotal weight
φ60mm100kPa
（Approx.1kgf/c㎡）		5kPa1,620mmNipple　PT1/8Approx.500g

※A variety of optional adapters are available in various sizes.
